Introduction to a Gas Spring

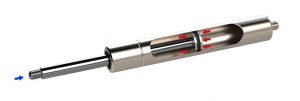

The basic principle of a gas spring is the same as a mechanical coil spring; it’s a device for storing energy. However, where a coil spring’s energy comes from straining the material that makes up the spring, a gas spring’s energy comes from compressing the Nitrogen gas contained within it.  Gas struts are closed systems that are charged with inert Nitrogen gas and require no external energy source in order to operate. The pressure on either side of the piston remains equal irrespective of its position, which differs to a hydraulic or pneumatic cylinder that requires a pressure differential across the piston in order to move.  So, if this is the case, how does it work when no further gas is introduced, and the internal pressure remains equal? The answer lies in the small cross-sectional area of the rod where the gas is unable to exert any pressure. It is the difference between the gas pressure acting on the internal cross-sectional area of the rod, and the atmospheric pressure acting on the external end side of the rod that causes the rod to extend.    SXV1 CUT OUT 2 300x101 - Introduction to a Gas Spring

As the rod is pushed into the tube the available gas volume is reduced and the gas contained in the spring is compressed. This increases the pressure (or resistance to force applied) and this compression of gas creates the spring-like behaviour. A small path through the piston enables the gas to flow across the piston and also provides the means of controlling the speed of the spring as it is depressed and extended.
